MEASURING GUIDE FOR BLINDS

Decide the fitting position of the blind, within the recess [recess] or outside the recess [Blind size]. It is important to measure the height your blind is being installed at from the floor (installation height) to comply with child safety.

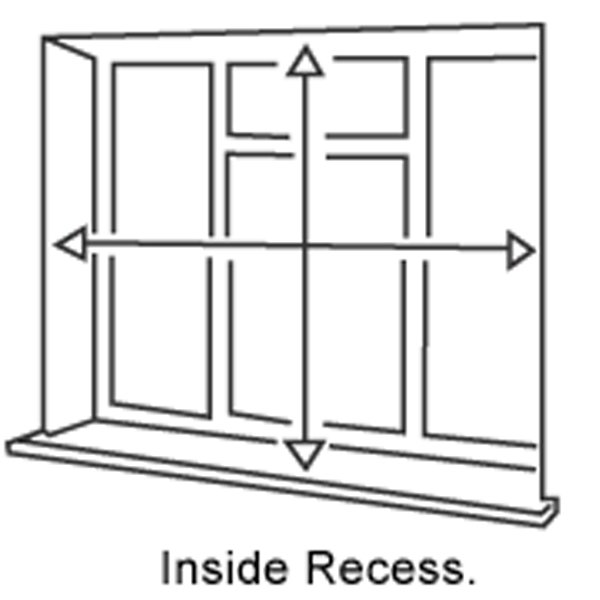

Measuring the Recess

Width – Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement.

Drop – Measure the height of the window at the left, centre and right. Use the longest height measurement.

We will make any deductions off the width of the blind to ensure the blind operates perfectly within the window recess.

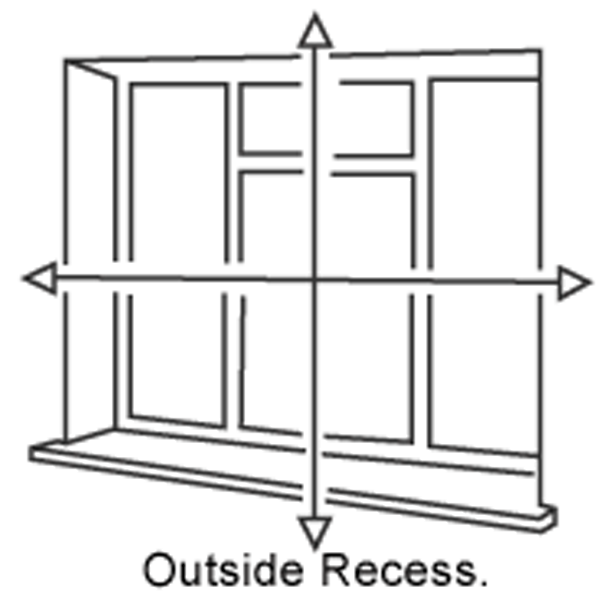

Blind size

Width – To minimise light leakage it’s recommended that the blind overlaps the window recess by least 50mm each side.

Height – When measuring the height take into account the required space for the mounting bracket, a flat surface of a minimum 70mm is advisable.

The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

MEASURING GUIDE FOR BLINDS

Measure the total width of the track or pole (excluding the finials).

If there is no track or pole we advise measuring 15cm-25cm (6”-10”) past the window.

Measuring Length

Before measuring the length, decide whether you want your curtains to fall to the sill, below the sill or to the floor. We suggest that:

Sill length curtains finish 1.25cm above the sill.

Curtains that fall below the sill finish 15cm below, unless there is an obstacle such as a radiator.

Floor-length curtains finish 1cm from the floor (although you can create a romantic, Bohemian look by having them longer so that they actually trail on the floor)

If there is no track or rods we advise measuring 15cm above the window or ceiling to the floor. If hanging on a track measure from the top of the track, if hanging on a rod measure from the hook on the bottom of the ring. If eyelet, tab measure from the top of the rod.
